Delievery Spools

Category: Packaging

Size Range(MM)	IEC 60264-3-2	As per JIS Spools
0.800 to 0.400	200/315, 250/400, 315/500 & 400/630	PT-90
0.400 to 0.130	200/315, 250/400, 315/500 & 400/630	PT-60

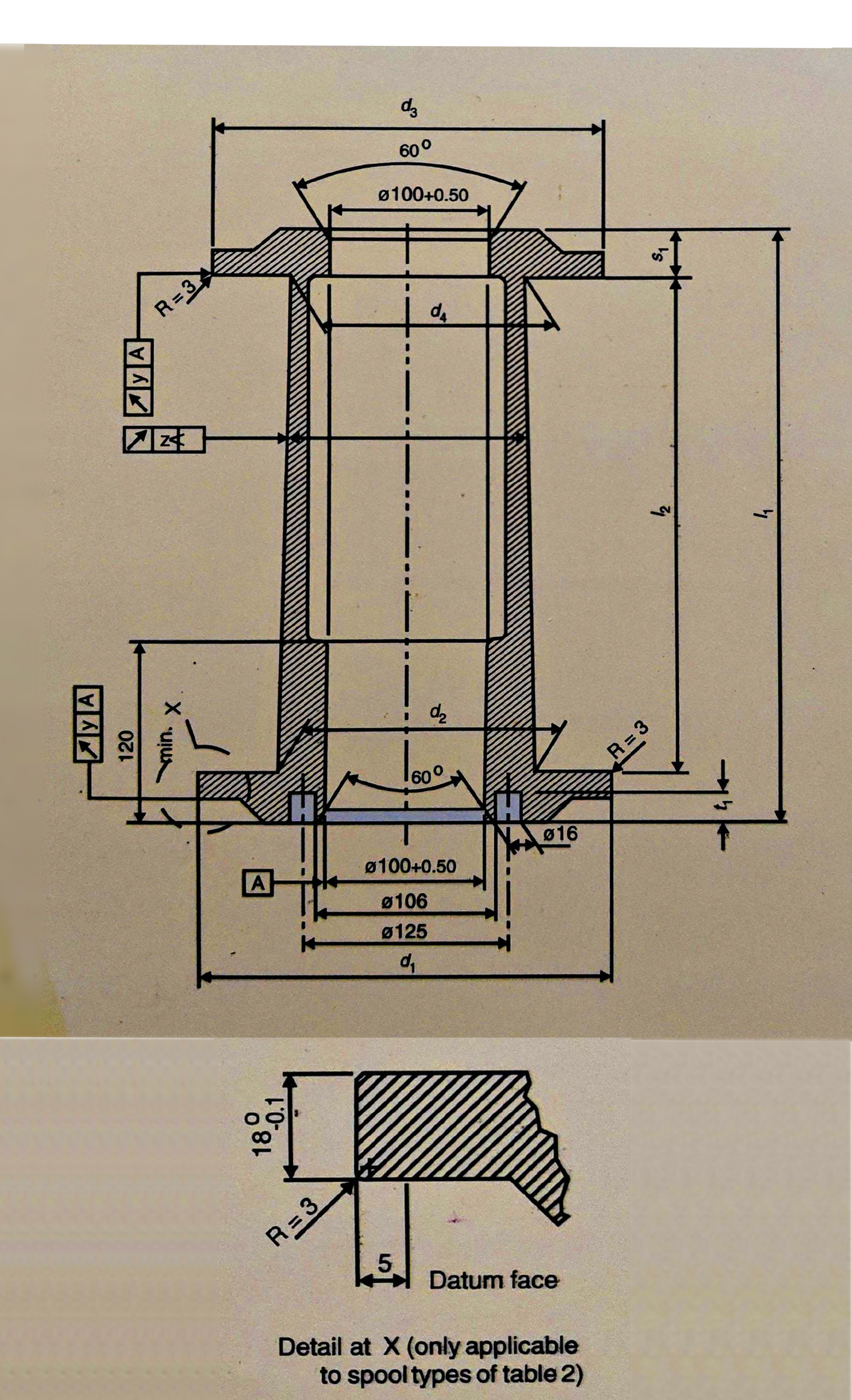

Spool Type	Dimensions(MM)											Net Weight, Max.(Kg)
	d1	d2	d3	d4	I1	I2		t1	s1	z	y
					Max.	Nom.	Tol.		Max.
200/315	200	125	190	112	315	265	+0.30	7	25	0.4	0.3	25
250/400	250	160	236	140	400	335	+0.50	15	32.5	0.6	0.4	45
315/500	315	200	300	180	500	425	+0.80	20	37.5	1.0	0.6	90
400/630	400	250	375	224	630	530	+1.00	30	50	2.0	1.0	180
500/800	500	315	475	280	800	670	+2.00	30	65	2.5	1.5	400

Taper barrelled spools are expertly designed for the secure and efficient packaging of aluminum and copper wires. Featuring a tapered design, these spools facilitate smooth winding and unwinding, ensuring minimal tangling, stretching, or damage to the wires during handling, transportation, or storage. Constructed with durability and precision in mind, they provide excellent stability, making them an ideal choice for industries requiring high-quality wire management solutions. These spools enhance productivity and reliability, ensuring the wires remain in optimal condition for various applications.

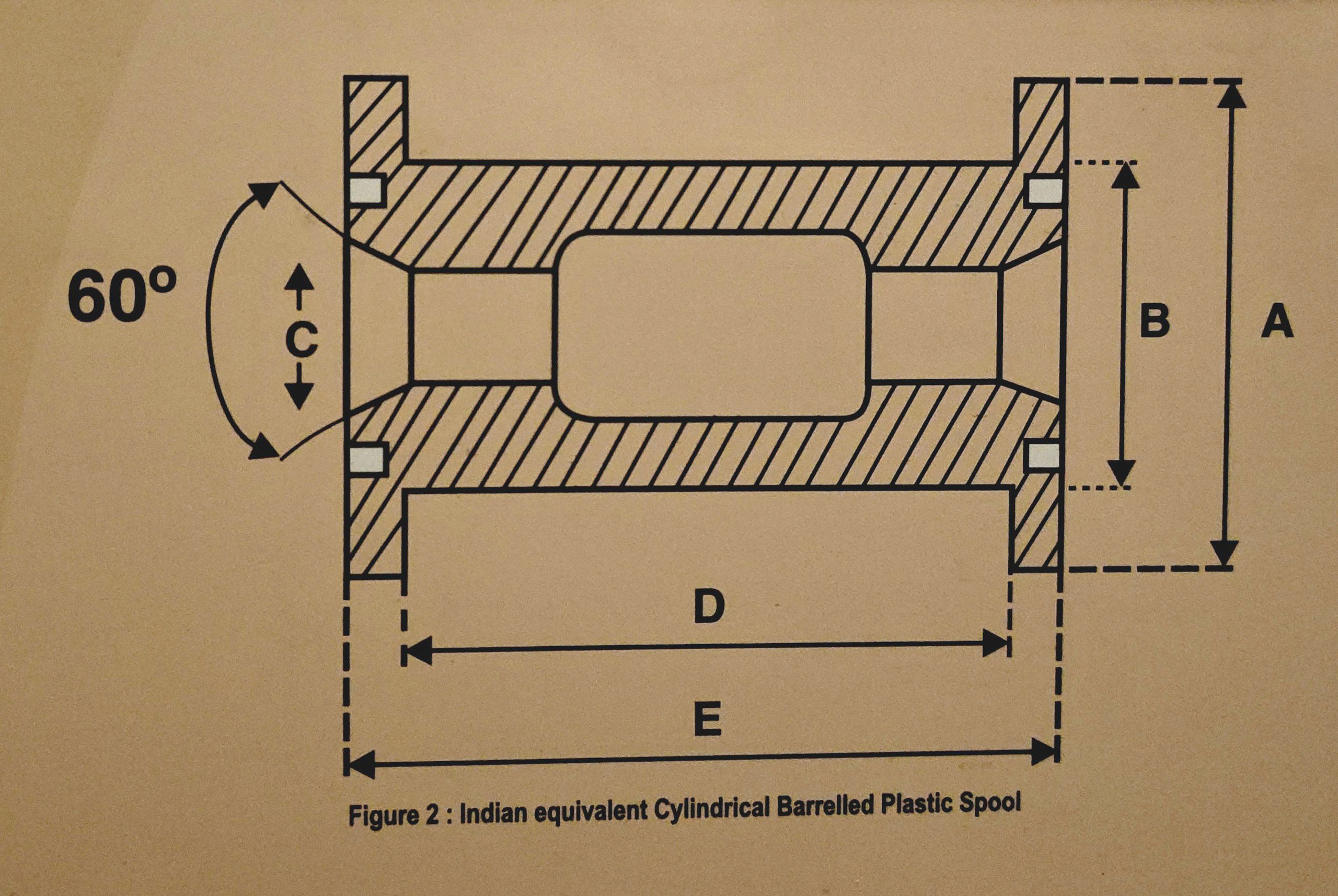

Dimensions of Indian Equivalent Cylindrical Barelled Plastic Spool.

Spool Type	A (MM)	B (MM)	C (MM)	D (MM)	E (MM)	Net Weight Max(Kg.)
125	125	65	20	70	95	3
160	160	95	35	102	125	7
250	250	115	40	120	150	20
500	500	300	38	240	276	110
